- IP Management

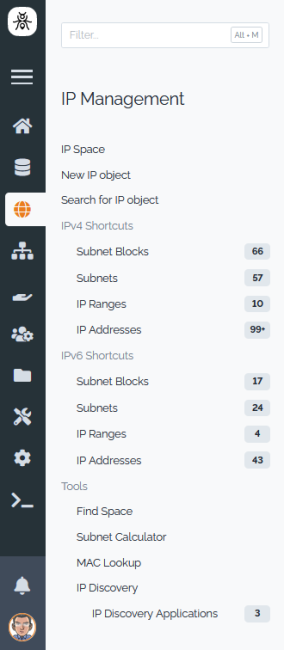

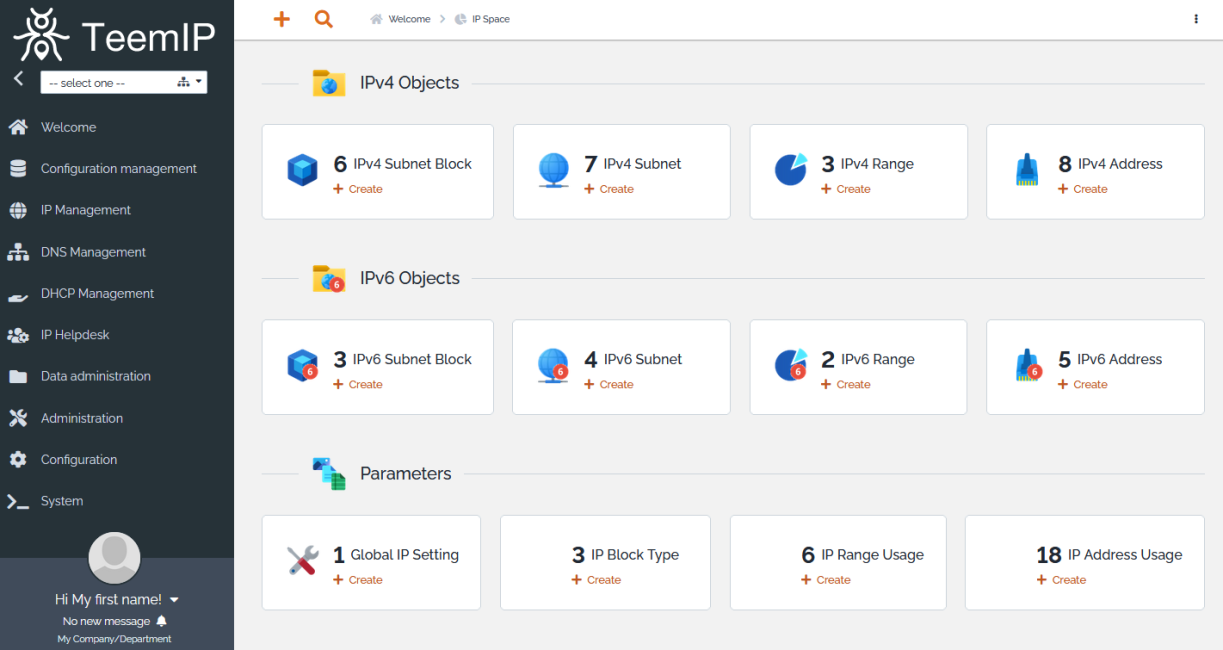

IP Management is the heart of TeemIp. This is the place where IPv4 and IPv6 spaces are administered. A set of IP objects modelizes your IP spaces:
And different tools dedicated to the IP world help you with that task.
The Configuration Management Data Base defines the objects (Configuration Items or CIs) that can be managed inside TeemIp, next to the pure IP objects (subnets, addresses, etc.). Widely inherited from iTop, it defines all the physical devices (PCs, Servers, Printers, Network devices, Telephones, etc.) but also some logicals elements (Groups, Application Solutions, Business Processes), software objects (Software Instances, Licenses, etc.), structuring entities (Organizations, Locations, etc…) and objects that are specific to network management (Domains, AS numbers, VRFs, etc..). Persons and Teams are also defined in this module.
In order to keep the elements to manage as simple as possible while covering most IT needs, the configuration management domain has been split into 6 modules, including a TeemIp specific one that groups the objects related to network management.
|This module is mandatory and covers all the basic building blocks of the CMDB: Organizations, Persons, Teams, Servers, Software Entitites, Groups…
|This optional module provides support for datacenter related devices: Racks, Envlosures, Power connections and PDUs.
|This optional module provides support for end-user related devices: PCs, Telephones, Printers and other Peripherals.
|This module is mandatory and provides network specific objects: IP Interfaces, VLANs, WAN links, DNS domains, AS numbers, VRFs.
|This optional module defines objects to manage advanced storage infrastructures, including SAN, NAS, Storage Systems, Fiber Channel Interfaces, Volumes…
|Virtual Machines, Hypervisors, Farms are defined in this module. You don't need to install this module if you don't want to managed virtualized infrastructures.
The linkage between CIs and IPs that TeemIp enables is described in the IP Addresses chapter.
TeemIp is a highly configurable application and many parameters allow you to adapt it to your own IP Management practices:
